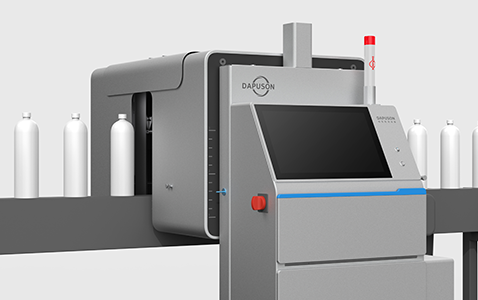

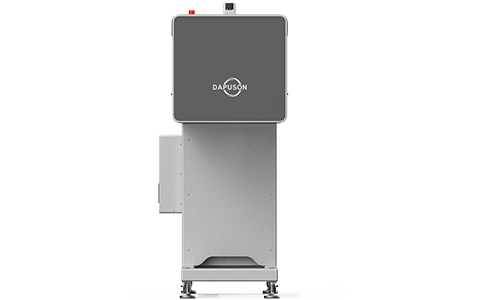

Capping & Fill Level Inspection Machine

Product Model：DPS-FBI-3C

Device Introduction：

The Capping & Fill Level Inspection Machine is a 360-degree all-around device for inspecting the capping and fill level of filled containers. Its adaptive design is suitable for various products such as plastic caps, screw caps, and crown caps. Its unique optical path design and advanced algorithms effectively ensure the production quality of high-speed filling lines.

characteristic

Stores up to 100
product parameter presets

Core components sourced from leading international brands
Ensures stable, reliable, and accurate operation

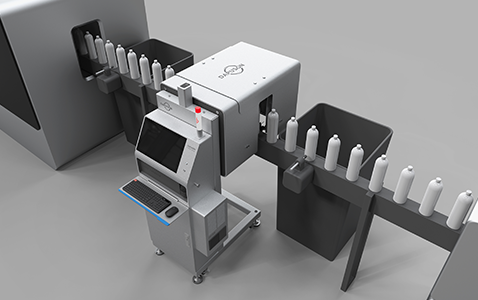

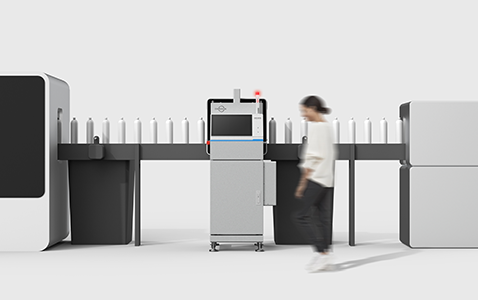

Simple integration with existing conveyor lines
Requires minimal modifications to on‑site conveyors

Comprehensive data statistics and reporting functions
Provides full traceability for quality control and user review

Compact, space‑saving cabinet design
Allows convenient addition of other inspection modules

Device video

Detection index

Tilted cap – > 1 mm
Missing cap – rejection if cap is absent
High cap – > 1 mm above normal
Tamper‑evident ring broken –
broken bridges > 30% or
gap > 0.7 mm (except for crystal‑head products)
Missing tamper‑evident ring – > 30% of the ring is missing
Foreign / mixed caps – rejection if color or shape differs from the specified standard
High / low liquid level – rejection if fill level deviates by ± 1.5 mm or more

parameter

Detection Capacity

81,000 bottles/hour
Suitable Containers

330 ml – 2,000 ml, PE, PET, or glass bottles for beverages, dairy, beer, etc.
Container Outer Diameter

30mm-110mm
Container Height

80mm-350mm
Main Material

304 stainless steel
Power Supply

Single‑phase AC220V, ±10%, 50/60 Hz
Power Consumption

2kW
Compressed Air

0.5 – 0.8 MPa, 0.5 L/min
Ambient Temperature

0ºC-45ºC
Ambient Humidity

10% – 90% (non‑condensing)
