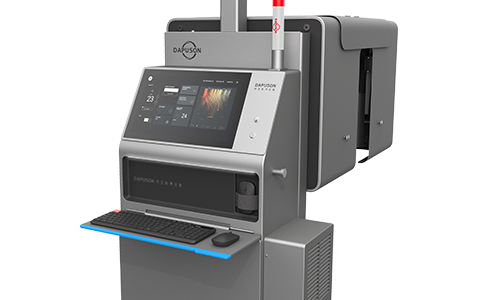

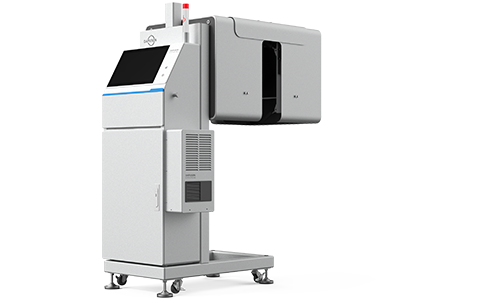

Label Inspector

Product Model：DPS-FBI-4L

Device Introduction：

The DPS-FBI-4L Label Inspector is a versatile and powerful label inspection device. It not only detects defects such as label height misalignment and seam displacement after labeling or sleeving, but also perfectly identifies label splices, inverted labels, wrong label types, poor cutting, wrinkles, and damaged labels. Its ingenious inspection station layout makes it suitable for different types of labels on products of various specifications.

characteristic

Stores up to 100
product parameter presets

Core components sourced from leading international brands
Ensures stable, reliable, and accurate operation

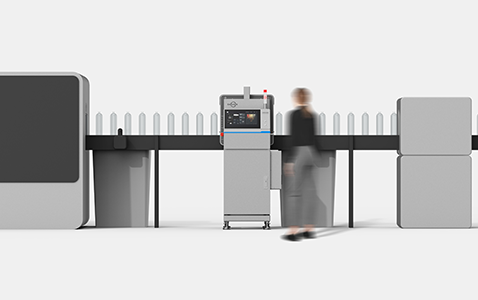

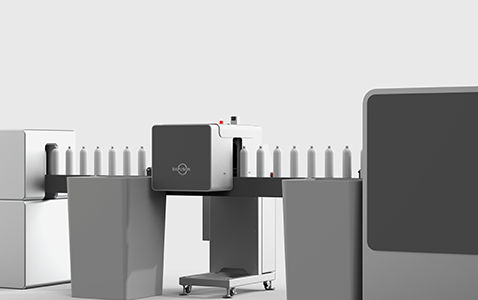

Simple integration with existing conveyor lines
Requires minimal modifications to on‑site conveyors

Comprehensive data statistics and reporting functions
Provides full traceability for quality control and user review

Compact, space‑saving cabinet design
Allows convenient addition of other inspection modules

Detection index

Triangular wrinkle: Wrinkle forming a triangular depression with area > 1 cm²
Label cutting defect: Exposed container body area ≥ 10 mm × 10 mm
Label splice (opaque tape): Opaque tape splice area ≥ 20 mm × 20 mm
Label height misalignment: Vertical position deviation ≥ ± 2 mm
Splice misalignment: Vertical offset between label ends > 1.5 mm
Inverted label: Label is upside down
Wrong label type: Label category / type does not match the specified standard

parameter

Inspection Capacity

72,000 bottles/hour
Suitable Containers

330ml – 2,000ml; PE, PET, and glass bottles for beverages, dairy, beer, etc.
Container Outer Diameter

30mm – 110mm
Container Height

80mm – 350mm
Main Material

304 Stainless Steel
Power Supply

Single‑phase AC220V, ±10%, 50/60 Hz
Power Consumption

2kW
Compressed Air

0.5 – 0.8 MPa, 0.5 L/min
Ambient Temperature

0°C – 45°C
Ambient Humidity

10% – 90% (non‑condensing)
