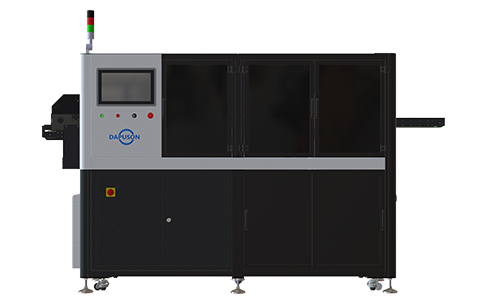

Cap Inspection Machine

Product Model：DPS-BCI-8C

Device Introduction：

The Bottle Cap Inspection Machine is a 360-degree all-around inspection device for detecting defects on the inner side and circumference of bottle caps. Designed specifically to provide high-quality caps for high-speed filling production lines, its adaptive design is suitable for various products such as dairy, beverage, and mineral water.

characteristic

Maximum inspection speed reaches up to 72,000 pieces per hour

Professional optical design for multi-specification products; real-time statistics & report generation available

Deep learning defect analysis; high-speed CCD & bright LED illumination

Modular inspection units for flexible product switching and commissioning

Detection index

Flash on tamper-evident band

Horizontal direction (focal plane direction): >1mm; Horizontal circumferential direction: >30°
Black spots on cap inner wall (threads unobstructed)

Size: >0.5mm×0.5mm, Contrast: >20
Black spots inside sealing ring

Size: >0.5mm×0.5mm, Contrast: >20
Stains on cap top surface

Size: >0.5mm×0.5mm, Contrast: >20
Black spots on upper surface of threads

Size: >0.5mm×0.5mm, Contrast: >20 (excluding product inflection points and visual blind zones)
Deformation of tamper-evident band

Horizontal direction (focal plane direction): >2mm; Horizontal circumferential direction: >30°
Black spots between outer wall of sealing ring and cap inner wall (excluding thread-obstructed areas

Size: >0.5mm×0.5mm, Contrast: >30
Black spots on cap outer wall (inspected by 6 cameras)

Size: >0.5mm×0.5mm, Contrast: >20 (excluding product inflection points)

parameter

Inspection Capacity

120,000 pcs/h
Applicable Products

All types of metal caps & plastic caps
Outer Diameter of Caps

15mm ~ 85mm
Main Body Material

304 Stainless Steel
Power Supply Voltage

3-phase AC 380V, ±10%, 50/60 Hz
Equipment Power

4kW
Compressed Air Requirement

0.5~0.8MPa, 0.5L/min
Ambient Temperature

0ºC~45ºC
Ambient Humidity

10% ~ 90%, non-condensing
